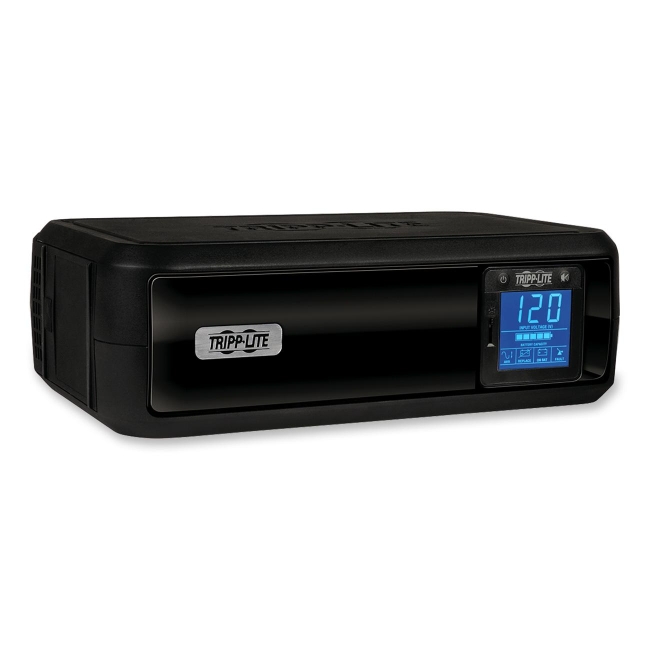

Tripp Lite SmartPro SMART1000LCD
Compare with other General Purpose UPS
Compare
| Tripp Lite SmartPro SMART1000LCD |
VS |
General Purpose UPS |
|
|
General |
| Form Factor |
|
2u Tower |
|
| Manufacturer |
|
Tripp Lite |
|
| Product Line |
|
Smartpro |
|
| Product Name |
|
Smartpro 1000 Va Tower Digital Ups |
|
| Manufacturer Part Number |
|
SMART1000LCD |
|
| Manufacturer Website Address |
|
Www.tripplite.com |
|
|
|
|
Specifications |
| Load Capacity |
|
1 Kva/500 W |
1.1% General Purpose UPS have 1 kVA/500 W |
| Backup/Run Time |
|
0.18 Hour 250 W Half Load, 0.05 Hour 500 W Full Load |
|
| Interfaces/Ports |
|
1 X Usb |
|
| Output Voltage |
|
120 V Ac Nominal |
|
| Input Voltage Range |
|
120 V AC |
|
| Receptacles |
|
4 X Nema 5-15r - Battery Backup System, 4 X Nema 5-15r - Surge-protected |
0.7% General Purpose UPS have 4 x NEMA 5-15R - Battery Backup System 4 x NEMA 5-15R - Surge-protected
|
| Frequency |
|
|
|
| Limited Warranty |
|
|
|
| Plug/Connector Type |
|
NEMA 5-15P |
46.7% General Purpose UPS have NEMA 5-15P
|
| Certifications & Standards |
|
Ul1778 (tuv)cul (tuv)nomfcc Class Bfcc Part 68 (us & Canada) |
|
| Filtering |
|
EMI/RFI |
|
| Additional Information |
|
Low Voltage Transfer To Battery Power: Switches To Battery Power As Line Voltage Decreases To 89v Or Less, Switches Back To Ac Mode As Line Voltage Increases To 94v Or Higherhigh Voltage Transfer To Battery Power: Switches To Battery Mode As Line Voltage Increases To 139v Or Higher, Switches Back To Ac Mode As Line Voltage Decreases To 135v Or Lowertypical Applications: Entry-level Pcs, Networked Workstations, Point-of-sale Equipment, Small Business Phone Systems, Audio/video Equipment And Home Theater Systems. Ideal For Sensitive Electronic Applications In Areas Where Brownout Conditions Are Commoncold Start: Yes, Inverter Can Be "cold Started" To Enable Temporary Ac Output During A Power Failureswitches: Includes 2 Front Panel Switches - One Main On/off Power Switch And One Dual Function "alarm Cancel" / "self Test" Button |
|
| Battery Recharge Time |
|
|
|
| Switching Time |
|
|
|
| Dataline Protection |
|
Rj-11 Phone/dsl Modem |
|
| Current |
|
|
|
| Voltage Handling |
|
5% Output |
|
| Temperature |
|
32 F (0 C) To 104 F (40 C) Operating, 5 F (-15 C) To 122 F (50 C) Storage |
|
| Humidity |
|
0 To 95% Non-condensing Relative Humidity |
|
| Surge Energy Rating |
|
|
|
| Battery Life |
|
4 Year To 6 Year |
|
| Color |
|
Black |
|
|
|
Dimensions |
| Width |
|
|
|
| Depth |
|
|
|
| Height |
|
|
|
| Weight (Approximate) |
|
|
|
