General |
| Form Factor |
|
2u Tower/rack Mountable |
|
| Manufacturer |
|
Tripp Lite |
|
| Product Line |
|
Smart |
|
| Product Name |
|

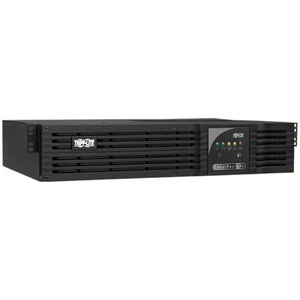

Smart Pro Sm2200rmnafta 2200va Tower/rack Mountable Ups |
|
| Product Model |
|
SM2200RMNAFTA |
|
| Manufacturer Part Number |
|
SM2200RMNAFTA |
|
| Manufacturer Website Address |
|
Www.tripplite.com |
|
| Product Series |
|
Pro |
|
|
|
|
Specifications |
| Load Capacity |
|
2.20 Kva/1.60 Kw |
3.3% General Purpose UPS have 2.20 kVA/1.60 kW |
| Backup/Run Time |
|
|
|
| Interfaces/Ports |
|
Rs-232, Usb, Db-9 Serial, Rj-11 |
|
| Output Voltage |
|
Nominal, 100 V Ac To 120 V Ac Adjustable |
|
| Input Voltage Range |
|
83 V Ac To 145 V Ac |
|
| Receptacles |
|
4 X Nema 5-15r, 4 X Nema 5-20r |
0.5% General Purpose UPS have 4 x NEMA 5-15R 4 x NEMA 5-20R
|
| Frequency |
|
60 Hz, 50 Hz |
|
| Batteries |
|
Sealed Lead Acid Hot-swappable |
|
| Plug/Connector Type |
|
NEMA 5-15P |
46.7% General Purpose UPS have NEMA 5-15P
|
| Certifications & Standards |
|
Hid Tested To Ul1778 (usa) Csa C22.2 No. 107.3 (canada) Rohs Class A (emissions) Nom (mexico) |
|
| Network Management |
|
Snmp Manageable Optional |
|
| Software Included |
|
Poweralert Ups Monitoring Software |
|
| Switching Time |
|
|
|
| Emergency Power OFF |
|
Yes |
|
| Green Compliant |
|
Yes |
|
| Green Compliance Certificate/Authority |
|
Rohs |
|
| Modular Slots |
|
1 X Expansion Slot |
|
| Temperature |
|
32 F (0 C) To 104 F (40 C) Operating, Storage |
|
| Humidity |
|
0 To 95% Relative Humidity Non-condensing |
|
| Status Indicators |
|
Five Front Panel Leds: Green Power Led 3 X Color Battery Charge Led 3 X Color Output Load Level Led Green Voltage Correction Led Red Battery Warning Led |
|
| Waveform Type |
|
Sine Wave |
|
| Power Cord/Cable |
|
|
|
| Surge Energy Rating |
|
|
|
| Battery Life |
|
4 Year To 6 Year - Typical |
|
| Parts Warranty/Labor |
|
2 Year Limited |
|
| Protection Type |
|
EMI / RFI |
|
|
|
Dimensions |
| Width |
|
|
|
| Depth |
|
|
|
| Height |
|
|
|
| Weight (Approximate) |
|
|
|
